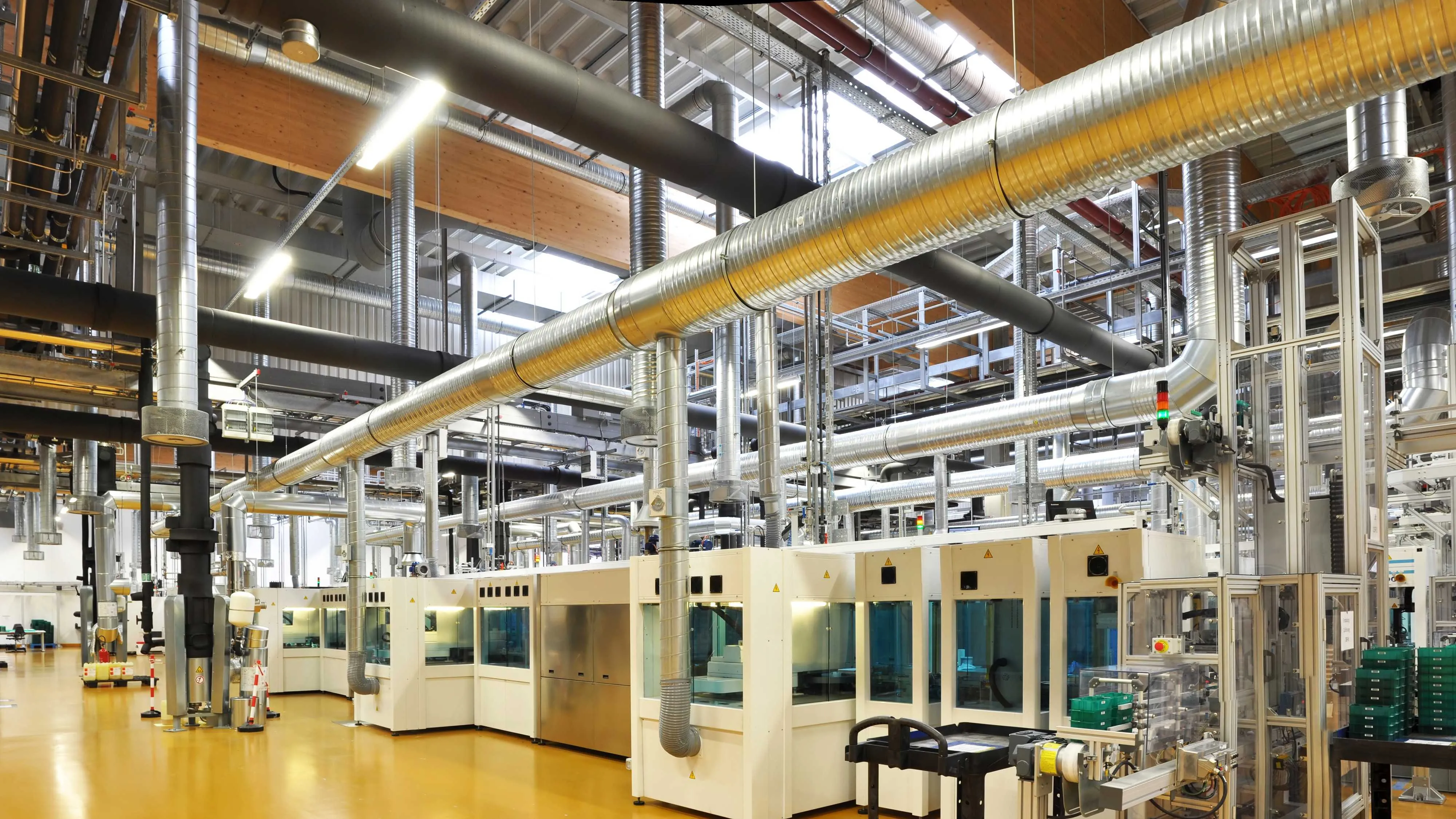

High-tech industry factory

Talk to an expert

We help you to navigate through your logistics questions.

Get in touch

What is a sub-fab?

Inside the essential infrastructure behind semiconductor manufacturing.

A sub-fabrication area, or sub-fab, houses the utility, vacuum, gas, exhaust, and support systems that cleanroom tools need to operate.

With the continued development of ever more advanced nodes, it is important to understand the supporting fab infrastructure and how it impacts manufacturing stability, equipment performance, and yield.

In this article, we explore the operational role of a sub-fab and the equipment it contains. We discuss why it has become more critical as the industry has advanced, and what its operational demands mean for the fabs and partners that depend on it.

What is a sub-fab?

A sub-fab is the dedicated infrastructure level of a semiconductor fabrication plant. Sub-fabs contain equipment that supplies process inputs to manufacturing tools in the cleanroom and manages the byproducts generated during production.

Sub-fabs are located beneath or adjacent to cleanrooms to isolate heat, noise, and contaminants from critical manufacturing areas. Since cleanroom environments require extremely controlled, unidirectional, ultra-clean airflow, they will typically also have an overhead air-handling and filtration plenum [1][2].

Sub-fab systems have four core functional areas

Delivery
Feeding ultra-high-purity gases, chemicals, water, and power into the production tools above.
Containment
Maintaining the vacuum, pressure, and atmospheric conditions that process tools require.
Abatement
Capturing, neutralising, and treating hazardous byproducts before they leave the site.
Continuity
Short outages can lead to significant wafer losses. Sub-fabs ensure the uninterrupted operation of all systems.

A sub-fab is a tightly engineered industrial environment operating in tandem with the cleanroom above it. Increasingly, it is treated as a strategic system in its own right rather than a support function.

Sub-fab vs fab: What is the difference?

The term fabrication facility, or fab, refers to the cleanroom and the production tools inside it. Fabs are where wafers are processed.

Here, process steps such as deposition, etching, lithography, ion implantation, and chemical-mechanical planarisation transform a blank silicon wafer into a finished chip.

The sub-fab is the infrastructure layer that supports those tools. A modern fab cannot function without its sub-fab any more than a car can run without its engine.

Every process tool in the cleanroom has a footprint in the sub-fab below it: gas lines, vacuum pumps, abatement systems, power conditioning, and cooling.

What equipment is housed in a sub-fab?

A sub-fab contains the supporting infrastructure for cleanroom tools, such as vacuum pumps, gas and chemical delivery systems, abatement equipment, power conditioning systems, and cooling and water systems.

Modern sub-fabs are highly complex environments with hundreds of systems. The main system categories are:

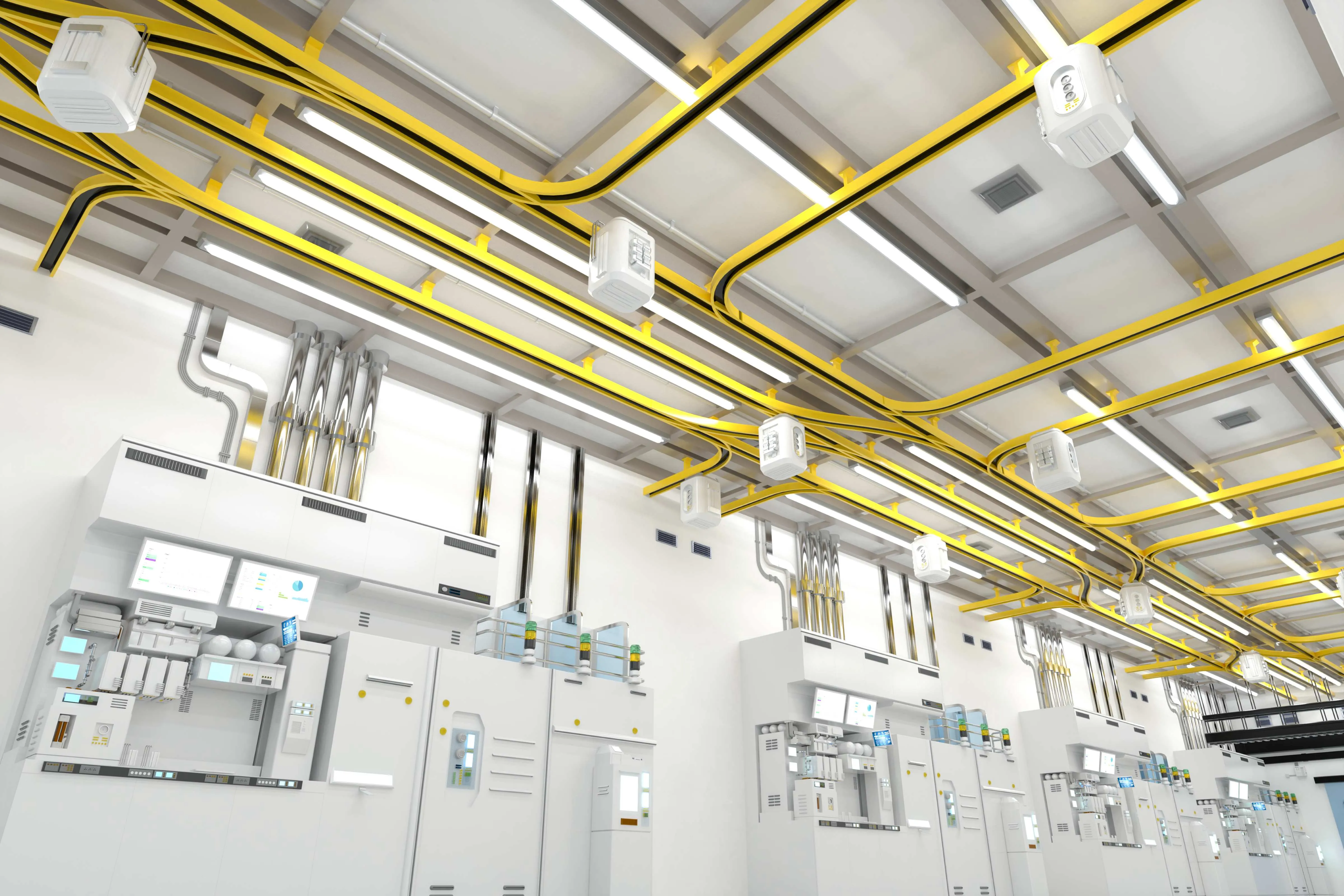

Interior of an industrial boiler, the piping, pumps and motors

Speciality gases (silane, ammonia, fluorine compounds, dopants) and bulk gases (nitrogen, argon, hydrogen, oxygen) are delivered to process tools at controlled pressure, flow rate, and purity.

Gas cabinets, gas sticks, and distribution manifolds sit in the sub-fab, often in dedicated gas rooms.

Purity requirements at advanced nodes are extreme (measured in parts per billion or even trillion). Any contamination in this layer can impact wafer yield.

Vacuum systems are critical to semiconductor manufacturing.

Sub-fabs contain roughing pumps, turbomolecular pumps, dry pumps, and associated foreline plumbing.

Liquid chemicals such as photoresists, developers, solvents, slurries for chemical mechanical planarisation, etchants, are stored, blended, and delivered from the sub-fab.

These systems handle materials that are ultra-pure, often hazardous, and highly sensitive to contamination.

A single advanced fab can use two to four million gallons of UPW per day [3][4]. UPW production, polishing, distribution, and recovery loops are sub-fab infrastructure.

Water purity is held to extreme standards: resistivity above 18.2 MΩ·cm and trace contaminants measured in parts per trillion, with advanced-node specifications now pushing toward parts per quadrillion [4][5][6].

Process tools generate hazardous byproducts, including pyrophoric gases, toxic compounds, and fluorinated greenhouse gases (PFCs, NF3, SF6) with global warming potentials thousands of times that of CO2 [7][8].

Abatement equipment captures and neutralises these before the exhaust leaves the building.

Modern abatement is a coordinated layer of point-of-use, sub-fab-level, and stack-level treatment, increasingly tied to environmental compliance reporting [7].

Process tools generate heat that must be removed precisely.

Process cooling water loops, heat exchangers, and chillers in the sub-fab regulate tool temperatures within tight tolerances.

Advanced lithography tools, particularly EUV systems, use 30 to 40 kW pulsed CO2 drive lasers to generate plasma from tin droplets [9][10]. Full EUV systems require roughly one MW of total power supply [11].

Power systems, regulators, and uninterruptible supplies in the sub-fab deliver clean, stable power. Voltage transients can damage process tools or corrupt a wafer in flight.

Sub-fab air handling infrastructure (recirculation systems, makeup air units, exhaust treatment) maintains the cleanroom's ISO Class 1 to Class 5 conditions, defined by ISO 14644 and ranging from ≤10 particles per cubic metre (Class 1, required for EUV lithography) to higher tolerances for support zones [12][13].

Liquid waste streams (acidic, alkaline, solvent-bearing, fluoride-bearing) are collected, segregated, and treated in sub-fab-level systems before discharge.

Like abatement, waste treatment is increasingly governed by compliance regimes that vary by region.

Sub-fab equipment requires precise installation, defined maintenance cycles, and controlled end-of-life handling. They also depend on specialised spare parts and consumables.

Managing the logistics associated with sub-fab equipment and tools is highly complex. Only a few companies have the expertise and the capabilities to effectively and efficiently coordinate sub-fab logistics.

Are sub-fabs a constraint in semiconductor manufacturing?

As semiconductor manufacturing has become more advanced, sub-fabs have become a key constraint on fab performance.

Four shifts explain why:

Shift 1

Advanced node complexity

At 3nm and smaller, the sub-fab is feeding far more inputs into the cleanroom.

A brief precursor gas interruption can result in downtime, wafer loss, and requalification costs to restore production.


Shift 2

Regulatory and sustainability pressure

Hazardous chemical management, scope 3 emissions reporting, perfluorinated compound abatement, and cross-border regulation of regulated materials are now constraints on sub-fab design and operation.

Many older sub-fabs require retrofitting to comply with new environmental requirements.

Shift 3

Regional fab expansion

The CHIPS and Science Act in the United States, the European Chips Act (in force since September 2023, with a Chips Act 2.0 proposal expected in 2026), and parallel programs in Japan, Korea, India, and elsewhere are driving fab and sub-fab construction [14][15][16].

Political timelines, cross-border supply chains, and long-term support requirements for spares and refurbishment can disrupt the continuity, reliability, and consistency of fab operations.

Shift 4

Power consumption

EUV lithography, increasingly dense process tools, and higher wafer throughput have pushed fab power demand to levels that require dedicated transformers, conditioning systems, and out-of-gauge power equipment.

Much of this footprint sits in or adjacent to the sub-fab and has its own installation and maintenance demands.

Sub-fabs have moved from engineering support to a strategic system.
Sub-fab stability now directly drives fab uptime and yield.

What is sub-fab maintenance and lifecycle management?

Sub-fab maintenance and lifecycle management is the continuous process of installing, servicing, replacing, and retiring equipment.

Logistics plays an important role in maintaining optimum sub-fab operations.

Descriptive image

There are several overlapping phases:

New sub-fab systems are often brought online during fab construction or capacity expansion.

In most cases, this requires cross-border shipments of oversized, out-of-gauge cargo.

Sub-fabs require a continuous supply of spare parts, consumables, regulated materials, and replacement components.

Just-in-time and just-in-sequence logistics flows are essential for ongoing production.

Equipment is regularly cycled to refurbishment centres and returned to the fab.

This often involves cross-border logistics and must comply with strict contamination and regulatory controls.

Decommissioning equipment, hazardous material handling, asset recovery, and replacement of major systems, such as abatement units, involve complex reverse logistics flows.

The logistics associated with each phase must be carried out precisely and efficiently to ensure fab operations.

Sub-fab logistics is increasingly viewed as a continuity discipline rather than a freight category.

Why are sub-fabs important beyond the cleanroom?

Although they lack the visibility of cleanroom operations, sub-fabs are becoming increasingly more operationally and strategically important to the semiconductor industry.

Understanding the sub-fab is no longer optional for semiconductor manufacturing suppliers and service providers.

Sub-fab operations are what determine the yield of a fab. Environmental, safety, and regulatory requirements depend heavily on sub-fab systems.

Whether a fab meets its environmental targets depends on how well sub-fab systems perform. Fab ramp success depends on sub-fab systems working reliably from day one.

Logistics plays a major role in maintaining operational continuity for a sub-fab.

At Kuehne+Nagel, we have a deep understanding of sub-fabs and their impact on semiconductor manufacturing.

Our logistics solutions are designed to protect supply chains and keep sub-fabs operating at maximum efficiency.
